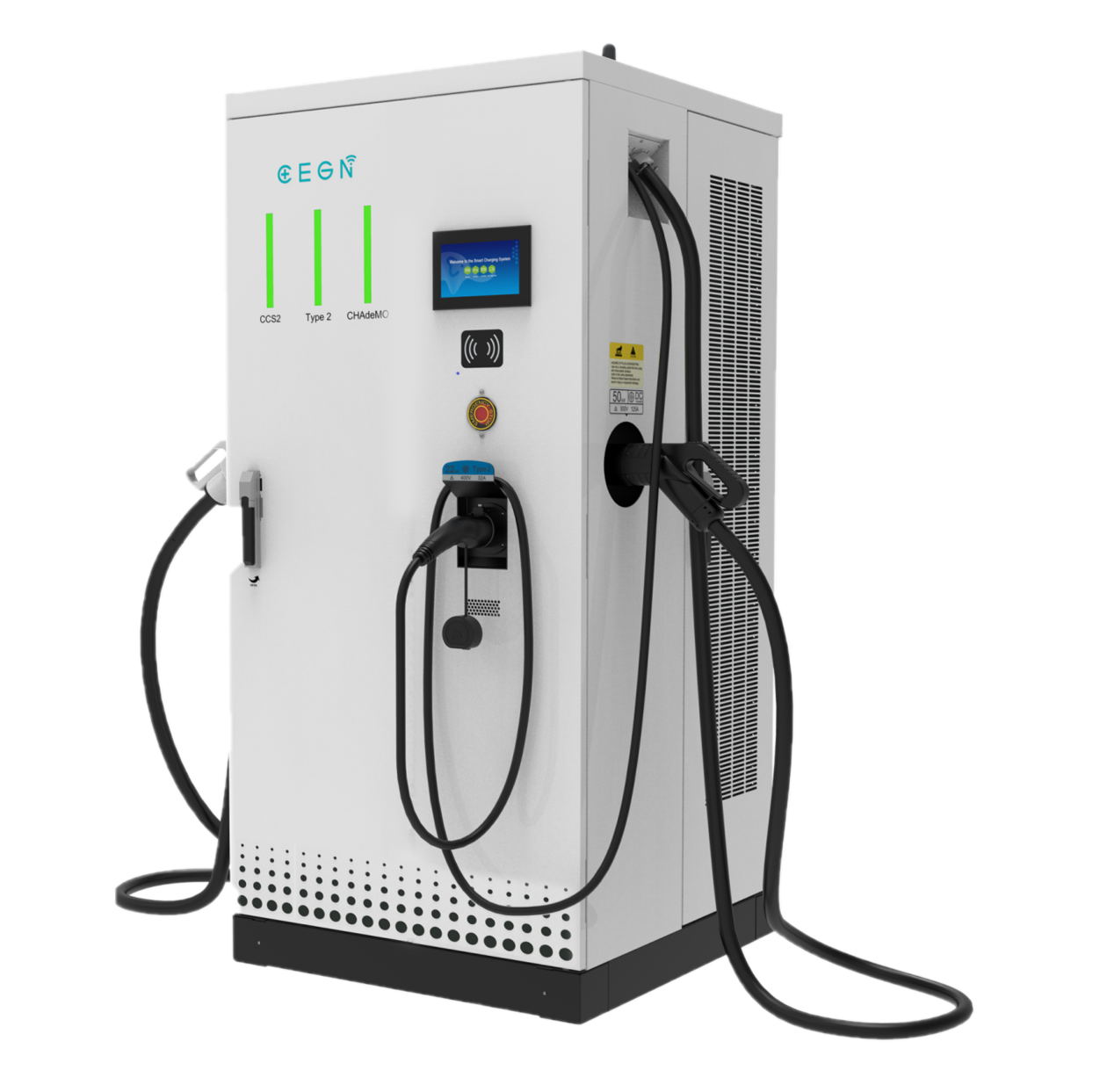

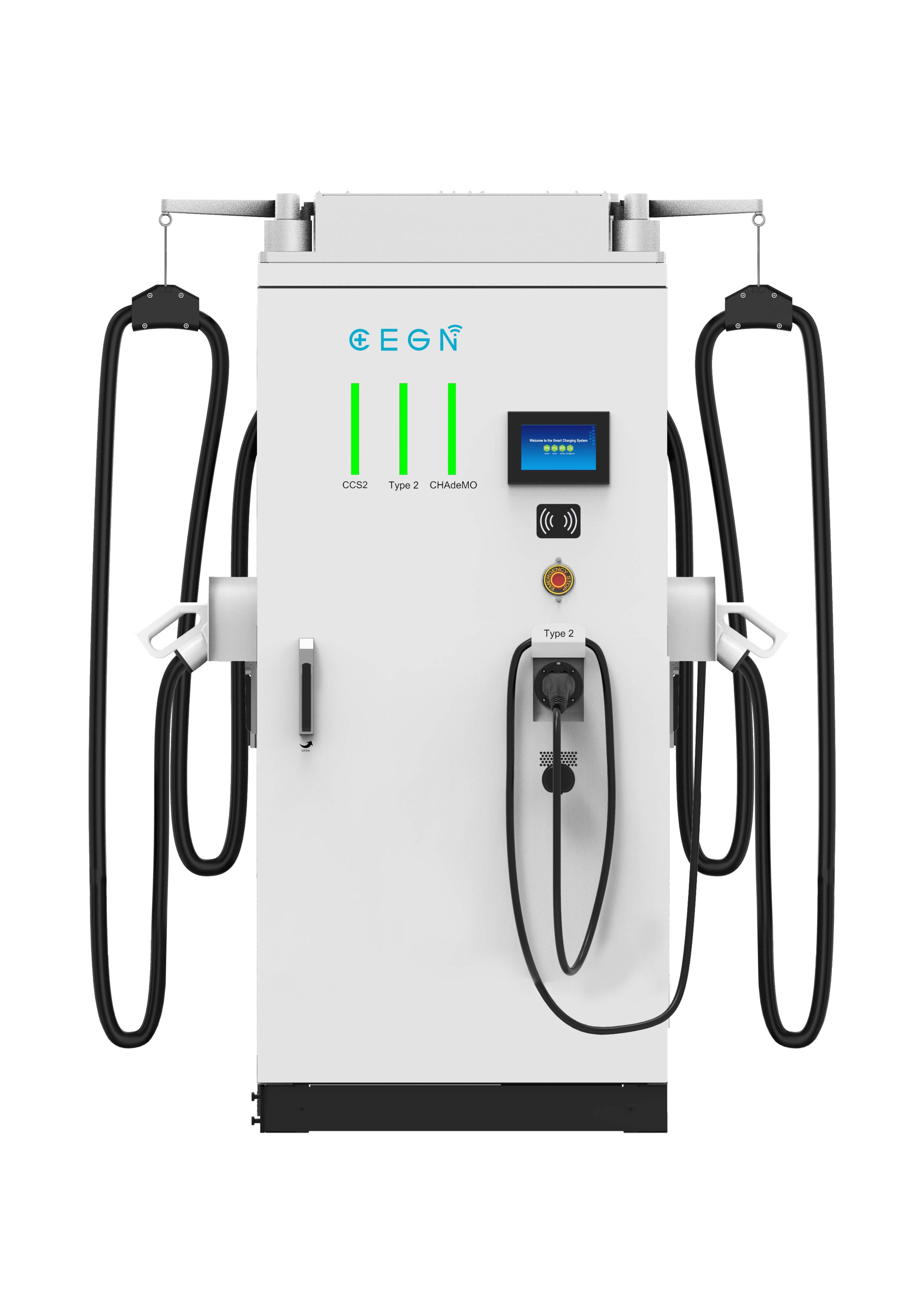

CL5830-C08 series Integrated AC/DC EVSE
This product is designed to charge electric vehicles with AC or DC charging of different charging standards at the same time. Its protection grade is IP54, and customers can safely use it outdoors. The maximum DC output power is 60kW to 180kW, and it is equipped with a 22kW AC charger. It has five different types of charging plugs, such as CCS2/CCS1, CHAdeMO, GB/T and Type 2 AC. In addition, the charging interface can be combined to meet the charging requirements of electric vehicles with most charging standards on the market.
Simultaneously 2 DC charging and 1 AC charging
60~180kW DC output, 22kW AC output
Double-gun intelligent power distribution function, distribution on demand
The hardware-level switch interlock monitoring and protection function
Wide voltage constant power output between: 300~1000VDC
Multi-standard plug: CCS2, CHAdeMO and GB/T
Support smart charging and load balancing
7-inch LCD touch color screen
Temperature control fan speed, lower noise, lower power consumption
The charging module adopts the glue filling process and has a longer service life
Applications
Designed for EV bus station, highway gas/service station, parking gargae, EV dealer workshops, commercial fleet operators, EV infrastructure operators and service providers.
Technicla Specifications
| Basic parameters | ||||||
Parameters | Model | CL5830-C08A | CL5830-C08B | CL5830-C08C | CL5830-C08D | CL5830-C08E |
| Input | Power supply | 3P+N+PE | ||||
| Voltage | 400VAC±10% | |||||
| Max current | 340A | |||||
| Frequency | 45～65Hz | |||||
| Output | Voltage | CCS2/GBT：150～1000V CHAdeMO：150～500V Type2：360～440V | ||||
| Max current | CCS2：200A CHAdeMO：125A Type2：32A GBT：250A | |||||
| Rated power | CCS2:60～180kW CHAdeMO:30/60kW GBT:60~180kW Type2:22kW | |||||
| User interface | Charge plug | CCS2+CHAdeMO Type2 | CCS2+CCS2 Type2 | CCS2+CHAdeMO | CCS2+CCS2 | CCS2+GBT |
| Cable length | 5 meter (Optional) | |||||
| Enclosure | Galvanized Steel | |||||
| LED indicator | Green/Yellow/Red | |||||
| LCD display | 7" Color Touchable LCD | |||||
| RFID card reader | Non-contact (ISO/IEC14443 A) | |||||
| POS terminal | Optional | |||||
| Start method | QR-code/ Card/ Password | |||||
| Communication | Interface | Ethernet/4G | ||||
| Protocol | OCPP1.6J/2.0J(Optional) | |||||
| Electrical Performance | Efficiency | ≥95%（Half load and above） | ||||
| Power factor | ≥0.98（Rated load） | |||||
| Harmonic distortion rate | ≤5%( Half load and above) | |||||
| Ripple coefficient | ≤1％（Peak to peak） | |||||
| Safety | Energy Meter | AC METER(MID); DC METER(PTB optional),Accuracy 1.0 | ||||
| Emergency stop | Yes | |||||
| Protection grade | IP54 and IK10 | |||||
| Electrical protection | Over-current, Leakage, Short Circuit, Grounding, Lightning, Under-voltage,Over-voltage and Over-temperature | |||||
| Certification | CE、CB、UKCA、AU、NZ | |||||
| Standard | EN/IEC 61851-1,EN/IEC 61851-23,IEC 61851-24,EN/IEC 61851-21-1 | |||||
| Working environment | Installation | Floor mounted | ||||
| Cooling | Forced Fan cooling | |||||
| Temperature | Working at －25℃～﹢50℃ Storage at－40℃～﹢70℃ | |||||
| Humidity | 5%~95% (Non-condensation) | |||||
| Altitude | ≤2000m | |||||
| Package | Product size | 850*850*1800mm（W*D*H） | ||||
| Package size | 1186*966*2034mm(L*W*H) | |||||
| N.W. (no module) | 324kg | 324kg | 318kg | 318kg | 318kg | |
| G.W. (no module) | 418kg | 418kg | 412kg | 412kg | 412kg | |
