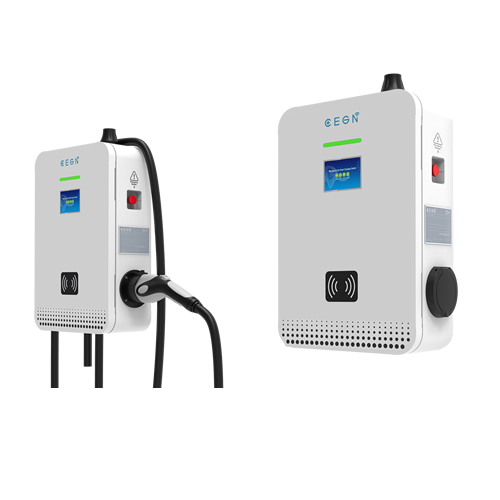

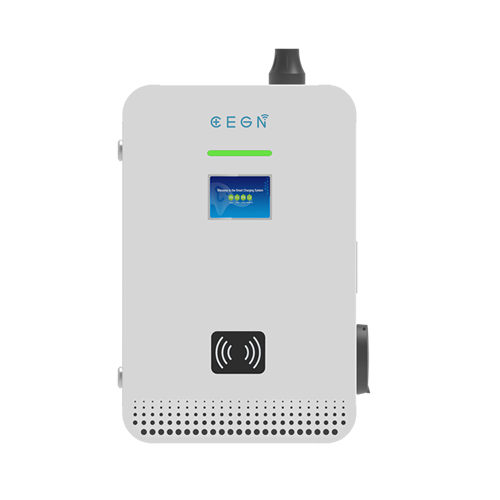

CL5435 Series Wall-Mounted AC Chargers
The CL5435 is an 11kW/22kW AC charger, boasting a sleek design and durable metal casing. This versatile equipment supports both wall-mounted and floor-mounted installations, requiring no external electrical parts. It’s primarily used in commercial settings.
Compatible with 11/22kW of three-phase 400VAC.
Supports various plug types and socket types.
Equipped with a 3.5" color LCD.
Includes a built-in AC meter (MID).
Features a built-in RCD (A+6).
Offers smart charging and load balancing.
Supports OTA upgrades, dialog, and troubleshooting.
Compliant with OCPP1.6J.
Applications
The CL5435 is designed for commercial buildings, office buildings, residential buildings, parking garages, service providers, and infrastructure operators that require EV chargers. It supports both wall-mounted and floor-mounted installations.
Technical Specifications
| Parameters | Model | CL5435-A10A | CL5435-A21A | CL5435-A21B |
| Input | Power supply | 3P+N+PE | ||
| Voltage | 400VAC±15% | |||
| Current | 16A | 32A | 32A | |
| Frequency | 45～65Hz | |||
| Output | Voltage | 400VAC | ||
| Max current | 16A | 32A | 32A | |
| Rated power | 11kW | 22kW | 22kW | |
| User interface | Charge plug | Type2 | Type2 | Type2 Socket |
| Cable length | 3m | 5m | / | |
| Enclosure | Galvanized steel | |||
| LED indicator | Green/Yellow/Red | |||
| LCD display | 3.5” color LCD(Optional) | |||
| RFID | Non-contact (ISO/IEC14443 A) | |||
| Start method | QR code/Card/Plug and Charge | |||
| Communication | Interface | Ethernet/4G/WIFI(Optional) | ||
| Protocol | OCPP1.6J/2.0J(Optional) | |||
| Safety | Energy Meter | Built-in, AC meter (MID),Accuracy 1.0 | ||
| Emergency stop | Yes | |||
| RCD | Built-in,30mA TypeA+6mA DC | |||
| EMC LEVEL | CLASS B | |||
| Protection grade | IP54 and IK10 | |||
| Electrical protection | Over-current, Leakage, Short Circuit, Grounding, Lightning,Under-voltage, Over-voltage and Over-temperature | |||
| Certification | CE，CB，UKCA, AU/NZ | |||
| Standard | EN/IEC 61851-1,IEC 61851-21-2 | |||
| Working environment | Installation | Wall mounted/ Ground standing (Optional with pedestal) | ||
| Temperature | -25℃~55℃ (with LCD); -30℃~55℃ (without LCD) | |||
| Humidity | 5%~95% (Non-condensation) | |||
| Altitude | ≤2000m | |||
| Package | Product size | 320*173*490mm(W*D*H) | ||
| Package size | 666*496*227mm(L*W*H) | |||
| Net weight | 12.5kg | 13.5kg | 11kg | |
| Gross weight | 13.5kg | 14kg | 12kg | |
