CL5436 Series Wall Mount AC Charger

Beautiful appearance, it is a special AC power supply device designed for electric bicycles. The system is composed of charging piles and multiple sockets, and supports 4G and Ethernet communication modes to upload the operation monitoring system. The charging pile adopts convenient and quick self-service operation, supports multiple payment functions, and has reliable security protection functions.

Product details
Features
  • Compatible 7/11kW of single-phase, 11/22kW of three-phase

  • Shell material (ABS+PC), Hardware integrated design, Smaller and lighter

  • Smart lamp signals, indicate standby, charging and various common fault states

  • No Screen/4.3" color LCD

  • Complete communication interface (BLE5.0+Eth/4G/WIFI)

  • Smart charging and load balancing

  • OTA upgrade, Dialog and Troubleshooting

  •  High protection, IP55

  • OCPP1.6J

Applications

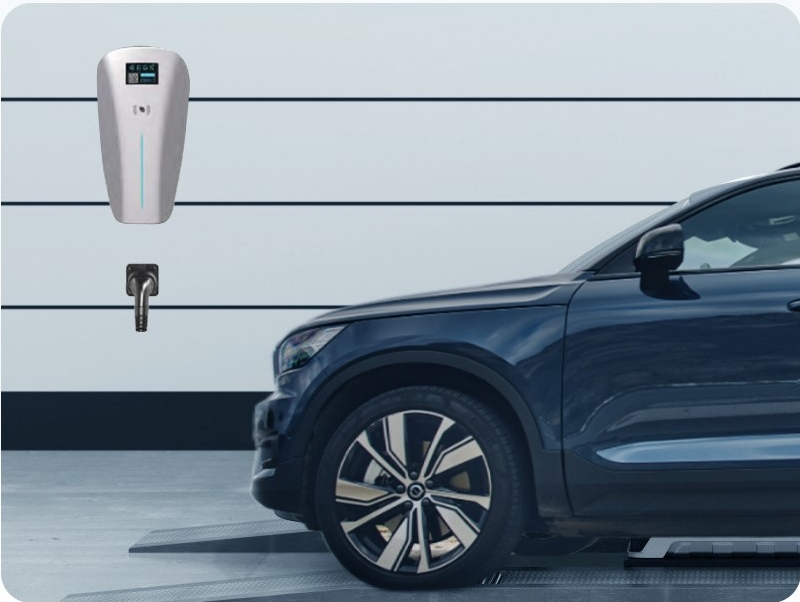

Designed for public parking lots, commercial buildings, community properties and household which have the requirement of EV charger, support wall mounted/ floor mounted installation.

Technicla Specifications

      Parameters

            Model

  CL5436-A07A

/CL5436-A07B

   CL5436-A11C

 CL5436-A11A

/CL5436-A11B

 CL5436-A22A

/CL5436-A22B

          Input

         Power supply

                        P+N+PE

                      3P+N+PE

              Voltage

                   220~240VAC

                    380~415VAC

             Current

           32A

         50A

         16A

         32A

            Frequency

                                                            50/60Hz

        Output

             Voltage

                    220~240VAC

                    380~415VAC

          Max current

           32A

         50A

         16A

         32A

          Rated power

           7kW

        11kW

        11kW

        22kW

   User interface

          Charge plug

   TYPE1/TYPE2

       TYPE1

       TYPE2

       TYPE2

          Cable length

                                           3/5m (include connector)

             Enclosure

                                       ABS+PC(IMR technology)

         LED indicator

                                         Green/Yellow/Blue/Red

          LCD display

                                       4.3”color LCD (Optional)

              RFID

                                   Non-contact (ISO/IEC14443 A)

         Start method

                              QR code/Card/BLE5.0/Plug and Charge

Communication

            Interface

                            BLE5.0/RS485;Ethernet/4G/WiFi(Optional)

            Protocol

                                       OCPP1.6J/2.0J(Optional)

        Safety

         Energy Meter

                                Onboard Metering,Accuracy level 1.0

       Emergency stop

                                                       Yes

               RCD

                                          30mA TypeA+6mA DC

         EMC LEVEL

                                                   CLASS B

       Protection grade

                                              IP55 and IK08

   Electrical  protection

Over-current, Leakage, Short Circuit, Grounding, Lightning,Under-voltage, Over-voltage and Over-temperature

          Certification

                                                CE,CB,KC

             Standard

                              EN/IEC 61851-1,EN/IEC 61851-21-2

       Working           environment

           Installation

                     Wall mounted/Floor mounted (with column optional)

         Temperature

                                                  -25℃~+55℃

           Humidity

                                       5%~95% (Non-condensation)

            Altitude

                                                       ≤2000m

        Package

          Product size

                                          218*109*404mm(W*D*H)

         Package size

                                          517*432*207mm(L*W*H)

          Net weight

          3.6kg

        4.5kg

         4.0kg

         5.0g


Welcome to contact
ShenZhen CEGN Co.,Ltd.
