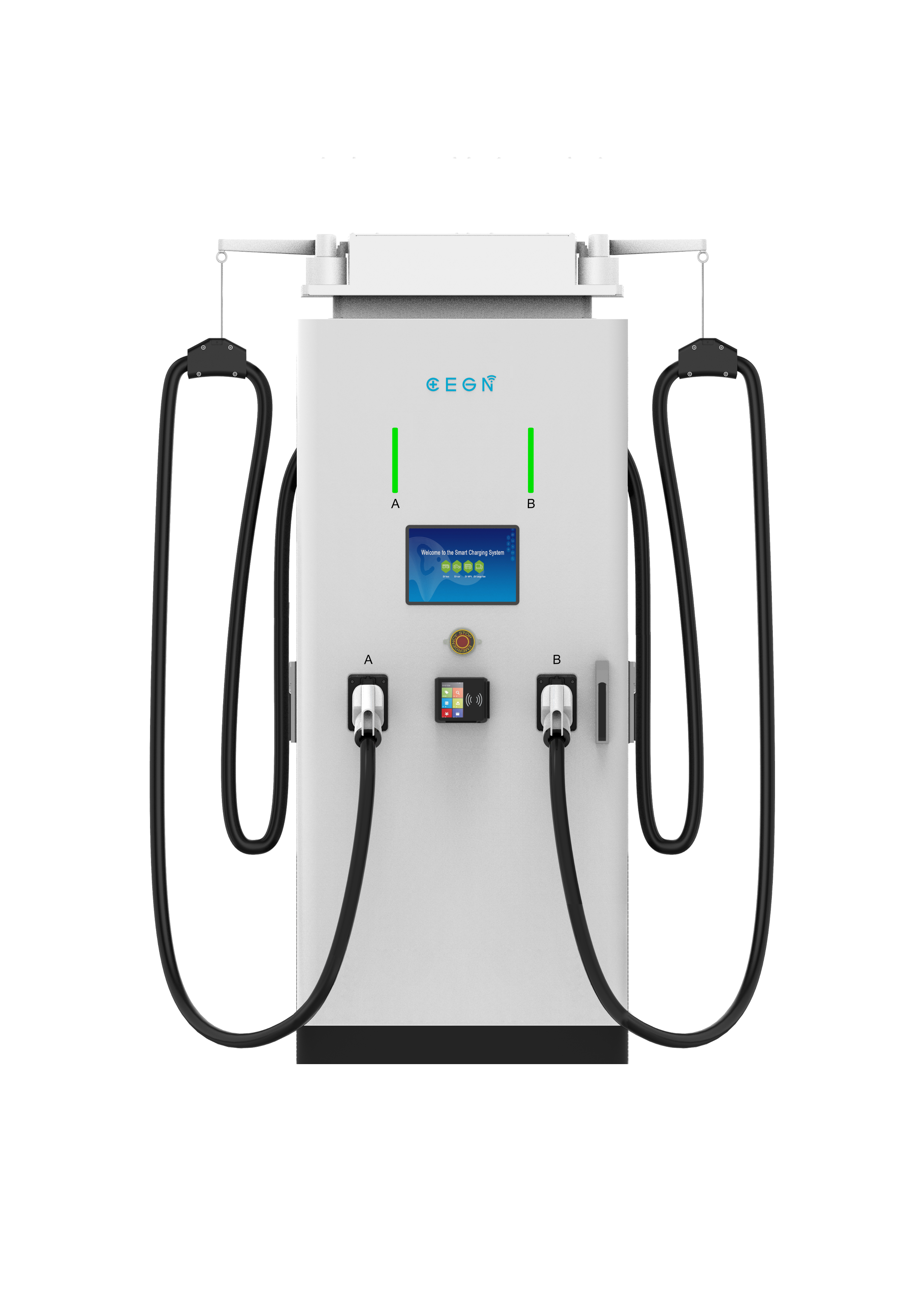

CL5890-B08/A08: 120kW DC EV Charger with Dual CCS Ports for Fast Charging
The CEGN CL5890-B08/A08 is a game-changer for DC fast charging, delivering up to 120 kW of power to electric vehicles in a compact and efficient package. Power up your electric vehicle fleet with the lightning-fast CEGN CL5890-B08/A08 120 kW DC EV Charger. This powerhouse delivers up to 120 kW of charging power through dual CCS ports, slashing charging times for electric buses, trucks, and cars alike. Whether you manage an EV bus station, highway gas stop, or bustling parking garage, the CL5890-B08/A08 is your answer for efficient and flexible DC fast charging. Its high-power output, dual CCS ports, and intelligent power distribution.
The CL5890-B08/A08 is packed with features that make it a reliable and user-friendly charging solution. These include:
Double-connector intelligent power distribution function: Ensures optimal charging speed for both guns, even when used simultaneously.
Hardware-level switch interlock monitoring and protection: Provides maximum safety for users and equipment.
Wide voltage, constant power output: Supports a wide range of EV models and charging needs.
Smart charging and load balancing: Optimizes charging efficiency and minimizes strain on the grid.
10-inch LCD touch-color screen: Provides easy access to charging information and controls.
Temperature control fan speed: Reduces noise and power consumption.
OTA upgrade, Dialogue, and Troubleshooting: Ensures your EVSE is always up-to-date and running smoothly.
Applications
The CL5890-B08/A08's versatility makes it ideal for a wide range of applications, including:
EV Bus Stations: Power up your electric bus fleet quickly and efficiently, ensuring on-time service and minimizing downtime.
Highway Gas and Service Stations: Offer fast and convenient DC charging to attract EV drivers and boost customer satisfaction.
Parking Garages: Provide valuable charging amenities for tenants and visitors, enhancing the appeal of your parking facility.
EV Dealer Workshops: Equip your service bays with high-powered charging capabilities to streamline repairs and maintenance for electric vehicles.
Commercial Fleet Operators: Keep your electric delivery trucks, taxis, or other commercial vehicles charged and ready to go, maximizing productivity and uptime.
EV Infrastructure Operators and Service Providers: Expand your charging network with a reliable and efficient DC charging solution that caters to diverse vehicle types and power needs.
Technical Specifications
Parameters | Model | CL5890-B08C /CL5890-B08B | CL5890-A08C /CL5890-A08B |
Input | Rated voltage | 400 V±15% | |
Input cable | 3P+N+PE | ||
Frequency | 50/60Hz | ||
Output | Output voltage | 150~1000VDC | |
Maximum current | 200 A*2 | 200A | |
Rate power | 60kW/100kW/120kW | ||
Charge connector | CCS1/CCS2,(Dual plug) | CCS1/CCS2,(Single plug) | |
User Interface | Enclosure | Galvanized | |
LED indicator | Green/Yellow/Red | ||
LCD display | 10'' color touch screen | ||
RFID reader | Non-contact (ISO/IEC14443 A) | ||
Start mode | QR-code/ Card/ Password | ||
Emergency stop | Yes | ||
Communication | Interface | Ethernet;WIFI/4G(Optional) | |
Protocol | OCPP1.6J/2.0J(Optional) | ||
Electrical Performance | Efficiency | ≥95%（Half load and above） | |
Power factor | ≥0.98 @ 50%~100% loading | ||
THD | ≤5% @ 50%~100% loading | ||
Ripple factor | ≤±0.5% | ||
Safety | Energy meter | DC Meter, Accuracy 1.0 | |
Protection grade | IP54/IK10 | ||
Electrical protection | Over current protection,Residual current protection,Short circuit protection,Ground protection,Surge protection,Over/Under voltage protection,Over temperature protection | ||
Certification | CE; KC(100kW) | ||
Standard | EN/IEC 61851-1,EN/IEC 61851-23,IEC 61851-24,EN/IEC 61851-21-1 | ||
Work Environment | Cooling method | Forced Fan cooling | |
Installation | Floor mounted | ||
Temperature | -25℃~﹢50℃ | ||
Humidity | 5%～95% (Non-condensation) | ||
Altitude | ≤2000m | ||
Package | Product size | 800（W）*750（D）×1,600（H）mm | |
Package size | 1120(W)*900(D)*1800 (H) mm | ||
N.W. | 360kg（no module） | ||
