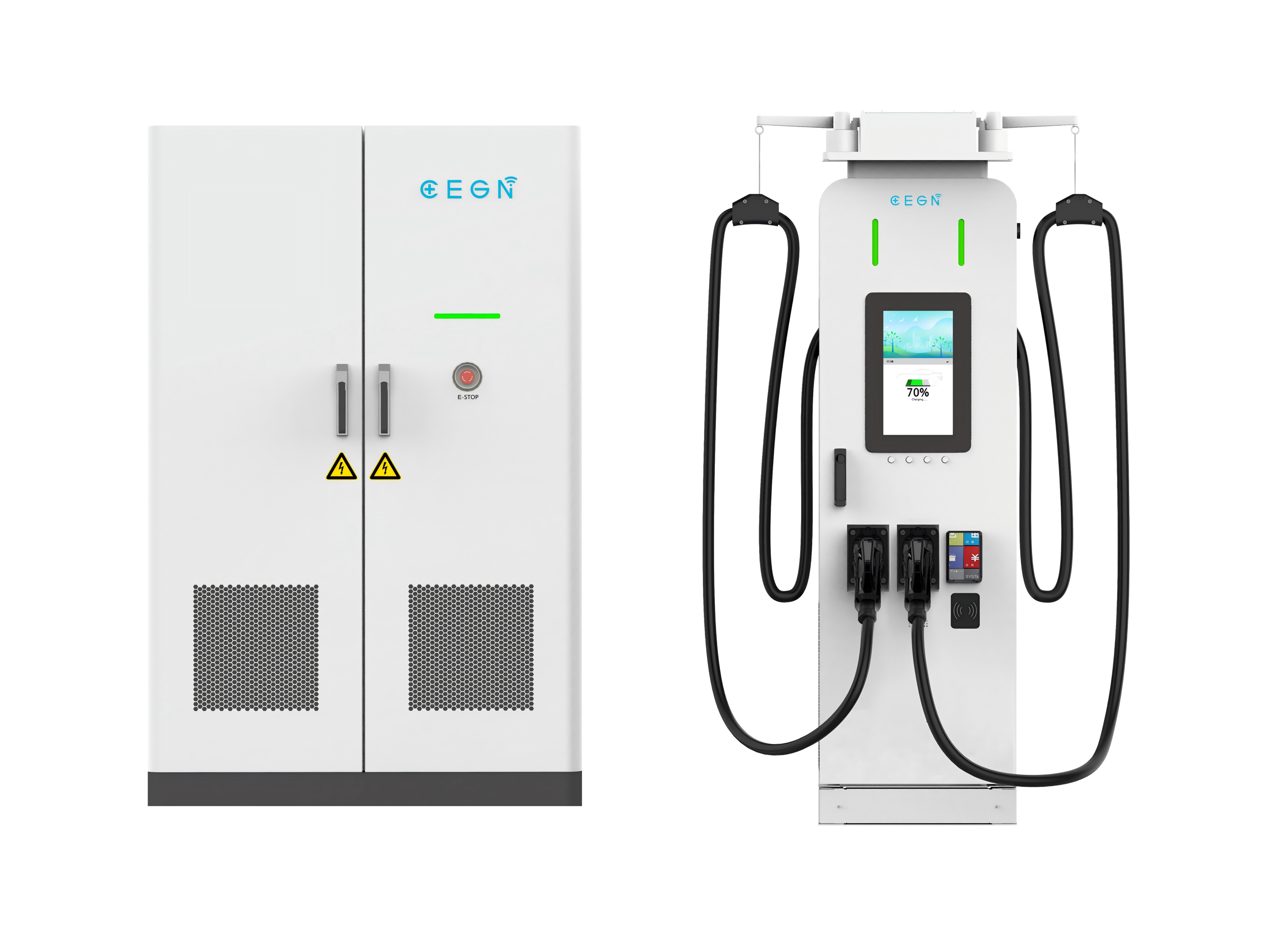

360/480kW Fan Cooling System DC EVSE: Power Your Future, Charge Smarter

Introducing the future of fast charging: the 360/480kW Fan Cooling System DC EVSE, a powerful and versatile charging solution designed to meet the demanding needs of today's electric vehicles. Revolutionize your fast-charging experience with the 360/480kW Fan Cooling System DC EVSE, a powerful and versatile charging solution designed for the future. This innovative product combines cutting-edge technology with robust engineering to deliver exceptional performance and reliability.

Product Details
Features

Here's what makes it stand out:

Unleash the Power:

  • 480kW Peak Output: Delivering rapid charging speeds, this system can fully charge compatible EVs in a fraction of the time compared to standard chargers.

  • Simultaneous Charging: Equip your station with up to 10 DC charging ports, catering to multiple vehicles simultaneously and maximizing efficiency.

  • Liquid-Cooled Power: Leverage two optional liquid-cooled connectors, each capable of delivering a staggering 500A, ideal for high-performance EVs.

  • Flexible Voltage: Adapt to various vehicle needs with a wide voltage output range of 300-1000VDC, ensuring compatibility with most electric cars.

Smarter Charging Experience:

  • Intelligent Power Distribution: Optimize energy usage and prioritize charging based on battery levels and individual needs.

  • Comprehensive Monitoring: Stay informed with real-time data on charging status, system performance, and energy consumption.

  • User-Friendly Interface: Navigate easily with a large 10-inch LCD touch screen, simplifying charging for users.

Built for Durability and Efficiency:

  • Forced Air Cooling: Maintain optimal operating temperatures through a reliable fan cooling system, even in demanding environments.

  • Intelligent Temperature Control: Adjust fan speed dynamically based on system needs, minimizing noise and energy consumption.

  • Remote Updates: Enjoy convenient over-the-air (OTA) firmware updates for improved functionality and enhanced security.



Applications:

This versatile charging system is ideal for various locations, including:

  • EV Bus Stations

  • Highway Gas/Service Stations

  • Parking Garages

  • EV Dealer Workshops

  • Commercial Fleet Operators

  • EV Infrastructure Operators

  • Service Providers

Invest in the future of EV charging with the 360/480kW Fan Cooling System DC EVSE. Contact us today to learn more and discover how this powerful solution can revolutionize your charging infrastructure.

Technical Specifications

Parameters

Model

CL5823-E48C

Input

Power supply

3P+N+PE

Voltage

400VAC±15%

Frequency

50 Hz/60Hz

Output

Voltage

CCS/GBT:150~1000VDC;CHAdeMO:150~500VDC;

Constant power voltage: DC300V-1000V

Max current

CCS Liquid-cooled plug :500A;CCS Natural cooling:200A     GBT:250A;CHAdeMO:125A

Rated power

360/480kW

User Interface

Charge plug

UP to ten connectors of CCS\CHADemo\GBT

Cable length

Liquid-cooled:4mAir cooled: 5m (Optional)

Enclosure

 Galvanized Steel

LED indicator

Green/Yellow/Red

LCD display

 10" Color Touchable LCD

RFID

Non-contact (ISO/IEC14443 A)

POS terminal

 Optional

Start method

 QR-code/ Card/ APP

Communication

user Interface

 Ethernet/4G/WIFI

Protocol

OCPP1.6J/2.0J(Optional)

Electrical Performance

Efficiency

 95%Half load and above

Power factor

 0.99Rated load

Voltage Accuracy

 ≤±0.5%

Current Accuracy

≤±1%

Safety

Meter Accuracy

DC METER 1.0

Emergency stop

Yes

Protection grade

 IP54 and IK10

Electrical protection

Over-current, Leakage, Short Circuit, Grounding, Lightning, Under-voltage,Over-voltage and Over-temperature

Certification

 CECB

Standard

EN/IEC 61851-1,EN/IEC 61851-23,IEC 61851-24,EN/IEC 61851-21-1

Working Environment

Installation

 Floor mounted

Cooling

Fan cooling

Operating Temperature

25℃~﹢50;

Humidity

5%~95% RH, Non-condensation

Altitude

2000m
