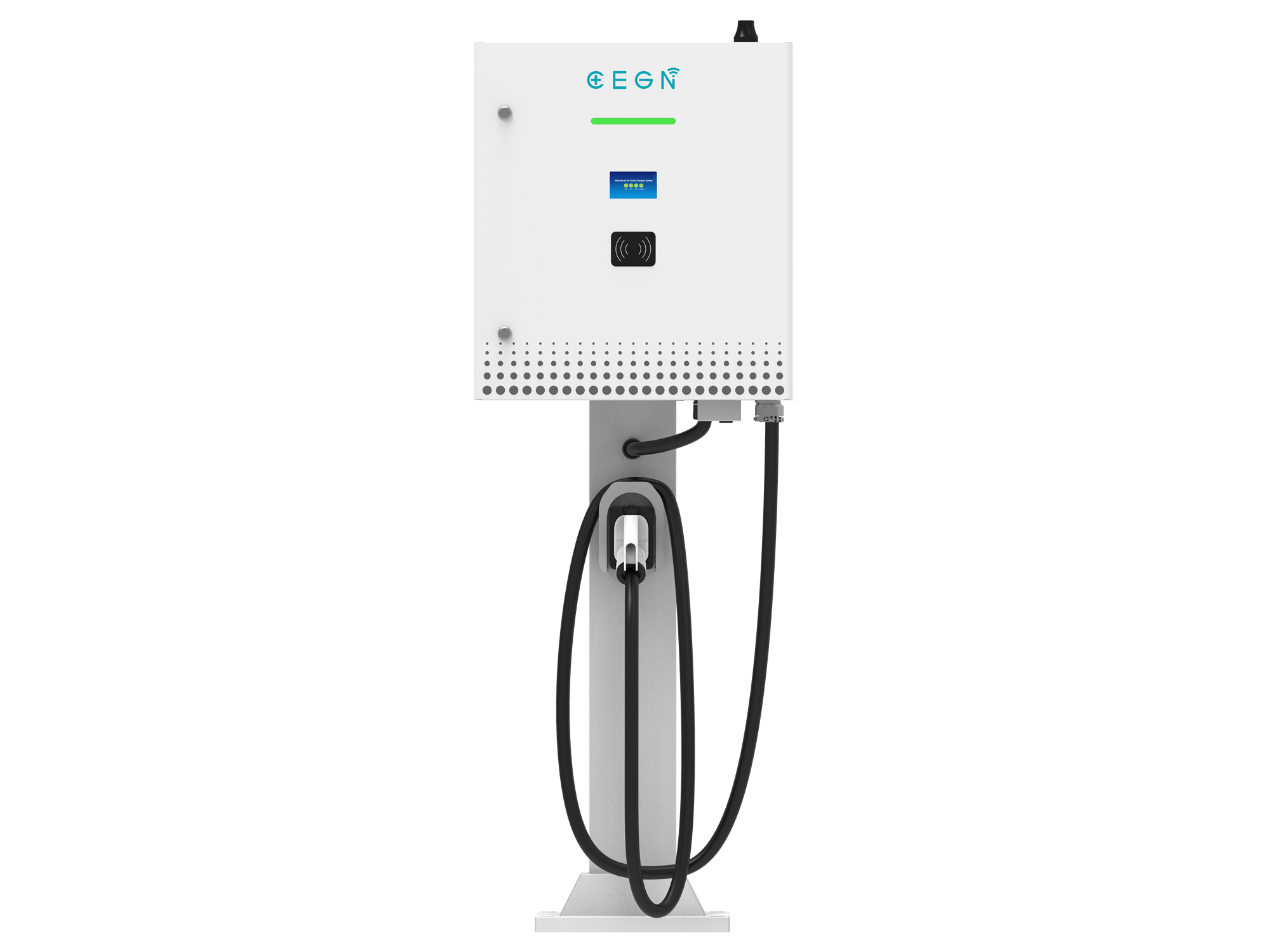

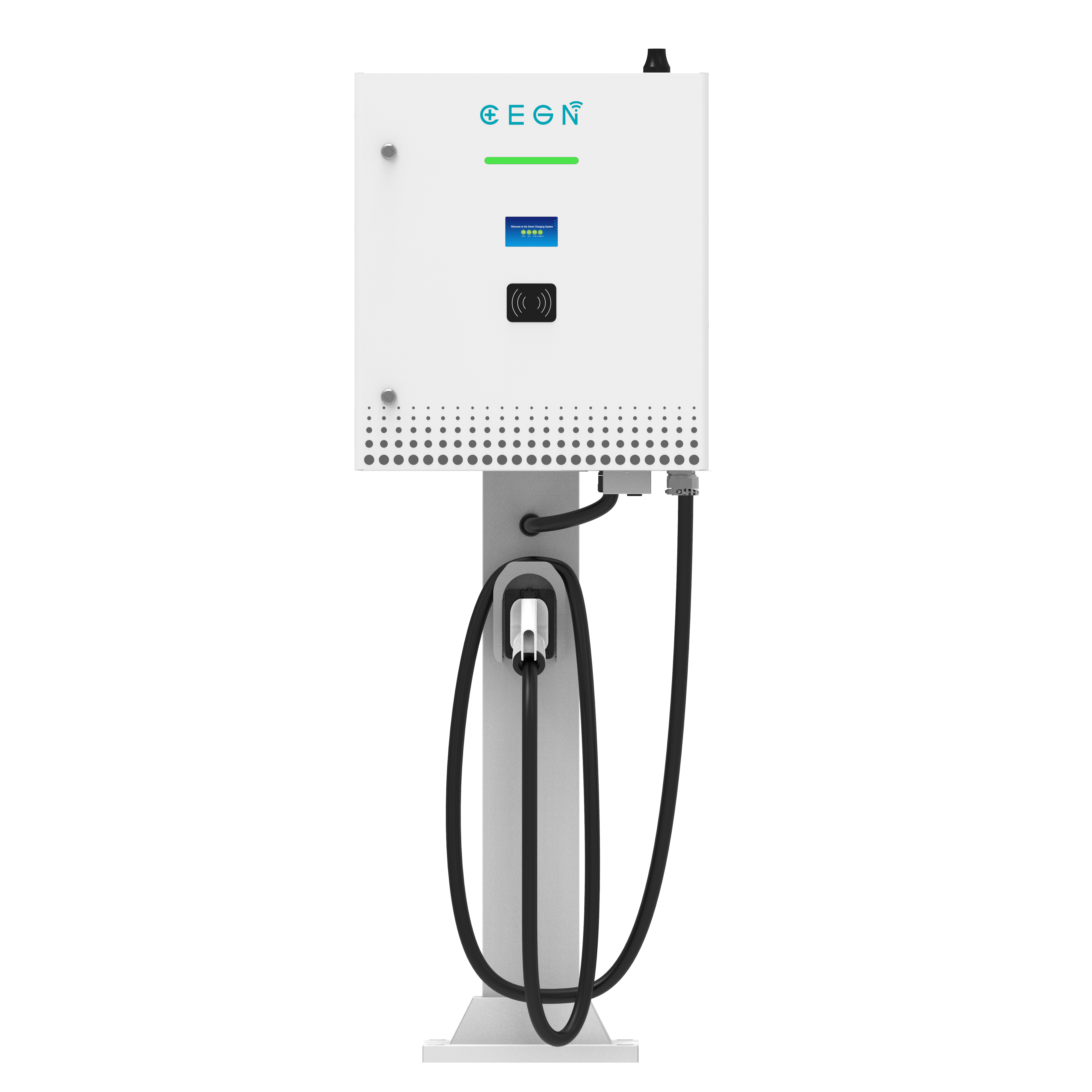

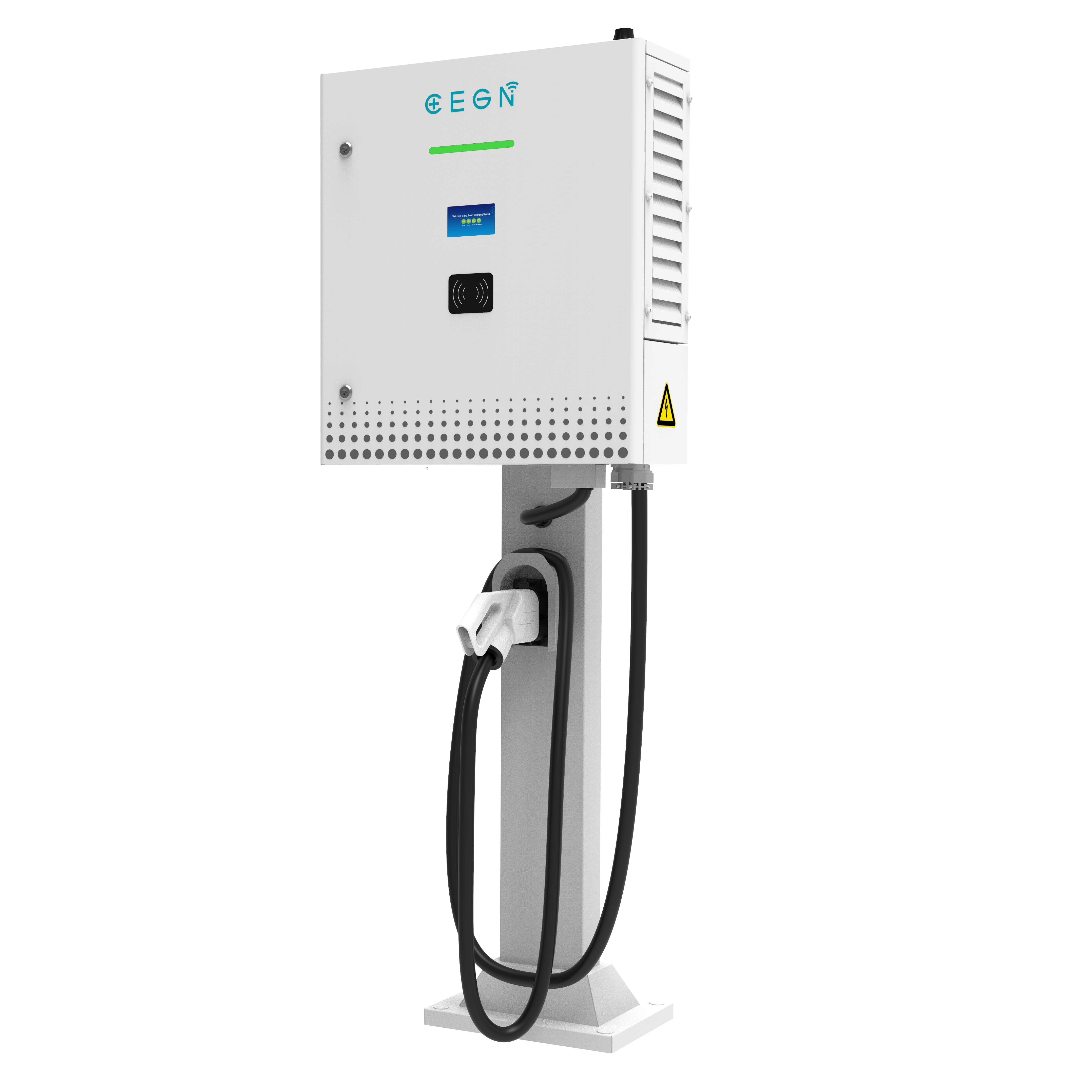

30/40kW Wall-mounted DC EVSE
Introducing the next generation of convenience: the 30/40kW wall-mounted DC EVSE. This powerhouse delivers ultra-fast DC charging up to 40 kW, ready to fuel your electric vehicle in no time, whether at home or in commercial settings. Its sleek design and flexible mounting options (wall or column) make it a perfect fit for any location.
Power & Speed:
Rocket your EV: Choose 30kW or 40kW DC charging for a speedy fill-up.
Go from empty to electric in minutes: Reduce charging time and get back on the road fast.
Wide voltage range: Adapts to any grid situation for consistent performance.
Convenience & Flexibility:
Charge any way you like: Card swipe, password, or QR code activation lets you choose.
Home or business? No problem: Ideal for both personal and commercial charging needs.
Touchscreen control: Stay informed and manage charging with ease.
Smart & Connected:
Brainwave charging: Optimizes power and balances the grid automatically.
Cool and quiet: Temperature control keeps noise and energy consumption low.
Always up-to-date: OTA upgrades ensure you have the latest features and security.
Remote control: Monitor, manage, and update your charger from anywhere.
Bonus Features:
Light show: LED indicators keep you informed about charging status and potential issues.
Track your energy: AC and DC meters help you manage costs.
Built to last: Durable construction and weatherproof design for long-lasting performance.
Applications:
The 30/40kW wall-mounted DC EVSE is perfect for:
Commercial buildings: Offer convenient charging for employees and visitors.
Office buildings: Attract EV-driving tenants and boost occupancy rates.
Residential buildings: Make your apartment complex stand out with home charging amenities.
Parking garages: Enhance your facility's appeal with fast and reliable charging options.
EV infrastructure operators and service providers: Expand your network with a versatile and user-friendly charging solution.
Technical Specification
Parameters | CL5871-A01A | CL5871-A01B | CL5871-A01C | CL5871-A01D | |
Input | Power supply | 3P+N+PE | |||
Voltage | 400 VAC ±15% | ||||
Frequency | 50/60 Hz | ||||
Output | Voltage | 150~1000 VDC | |||
Constant power voltage: DC 300-1000V | |||||
Max current | 133 A | 100 A | |||
Rated power | 40 kW | 30 kW | |||
User Interface | Charge plug | CCS 2 | CCS 1 | CCS 2 | CCS 1 |
Cable length | 5m (optional) | ||||
Enclosure | Galvanized Steel | ||||
LED indicator | Green/ Yellow/ Red/ Blue | ||||
LCD display | 4.3" Color Touchable LCD | ||||
RFID | Non-contact (ISO/ IEC14443 A) | ||||
Start method | QR code/ BLE/ Card/ PnC | ||||
Communication | User Interface | Ethernet/ 4G/ WIFI/ BLE5.0 (optional) | |||
Protocol | OCPP1.6J/ 2.0J (optional) | ||||
Electrical Performance | Efficiency | >95% (Half load and above) | |||
Power factor | >0.98 (Rated load) | ||||
Voltage Accuracy | <±0.5% | ||||
Current Accuracy | <±1% | ||||
Safety | Meter Accuracy | AC METER (MID, Optional) / DC METER; | |||
Accuracy class 1.0 | |||||
Emergency stop | Yes | ||||
Protection grade | IP54 and IK10 | ||||
Electrical protection | Over-current, Leakage, Short Circuit, Grounding, Lightning, Under-voltage, Over-voltage, and Over-temperature | ||||
Certification | CE, CB | ||||
Standard | EN/IEC 61851-1, EN/IEC 61851-23, IEC 61851-24, EN/I EC 61851-21-1 | ||||
Working Environment | Installation | Wall mounted/ Floor mounted (with column optional) | |||
Cooling | Forced air cooling | ||||
Temperature | -30°C~+50°C | ||||
Humidity | 5%~95% RH, non-condensing | ||||
Altitude | ≤2000m | ||||
Package | Product size | 650*230*730 mm (W*D*H) | |||
Package size | 996*866*428 mm (L*W*H) | ||||
Net weight | 71 kg | ||||
