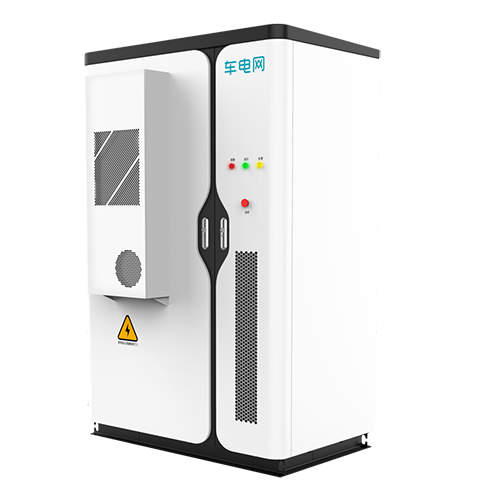

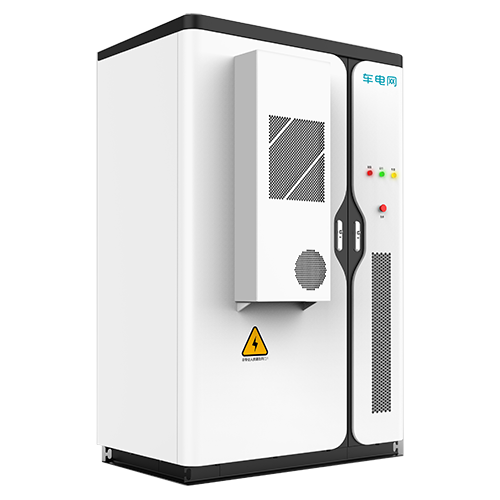

Air-cooled Energy Storage System-Distributed
Unleash peak performance and unparalleled security with our Air-cooled Energy Storage System. This modular powerhouse seamlessly integrates AI-powered intelligence for optimized operation and cloud-based management for effortless control. Maximize safety with features like single-cluster fine control and isolated battery compartment, ensuring reliable performance in any application. Embrace unprecedented scalability with its modular design. Expand capacity effortlessly by connecting multiple units, making it adaptable to scenarios ranging from power generation to user-side needs. Experience the future of energy storage with exceptional efficiency, unmatched security, and unparalleled flexibility.
Product features
Cloud Management
● Cloud platform interconnected,remote one-click upgrade,real-time status monitoring and fault recording
●Al cell monitoring,operation decision analysis,and intelligent scheduling
High Security
● Single cluster Finely controlled,No parallel connection exists on the DC side,Low short-circuit current
●Separate battery compartmentfrom electical compartmen,achieve electric.firefighting isolation
High Integration
● Modular architecture,Multiple machines can be connected,capacity can be expanded flexibly
●Applicable to all scenarios from power generation side to user side
Product Parameter
product mode | CDWGAH-01A200 | CDWGAH-02A233 |
system paramete | ||
system efficiency | ≥86% | ≥90% |
system cycle life | ≥6000 times@25℃,0.5C | ≥6000 times@25℃,0.5C |
rated charge/discharge ratio | 0.5C | 0.5C |
rated grid voltage | 400V | 400V |
noise | ≤65dBA | ≤65dBA |
working altitude | 2000m | 2000m |
communication protocol | RS485、CAN、LAN | RS485、CAN、LAN |
size(W*D*H) | 1600*1100*2400mm | 1200*1100*2350mm |
weight | 2000kg | 2200kg |
IP rating | IP54 | P54 |
design standard | GB/T36276、GB/T34131、UN38.3、UL9540A、UN3536、UL1642、UL1973、IEC62619 | |
DC parameter | ||
type of battery | LFP3.2V/280Ah | LFP3.2V/280Ah |
rated capacity | 200.7kWh | 232.9kwh |
composing form | 1P16S*14 | 1P20S*13 |
rated charge/discharge current | 140A | 140A |
max direct voltage | 1000V | 1000V |
operating voltage range | 627~806V | 728~936V |
RH | 5%~95% | 5%~95% |
cooling mode | air cooling | air cooling |
firefighting system |
perfluoro/ heptafluoropropane |
perfluoro/ heptafluoropropane |
AC parameter | ||
rated output power | 100kw | 100kW |
max output power | 110KW | 110kW |
PCS output voltage | 400V | 400V |
allowable voltage | 340-440V | 340-440V |
rated alternating current | 145A | 145A |
rated frequency | 50/60Hz | 50/60Hz |
adjustable range of power factor | -1~+1 | -1~+1 |
